Latitude: 39.5805
N
Longitude:
86.4207 W
Click here for Google map
Elevation: 182 m ASL
Installation
Date:
22 September 2010
Sampling

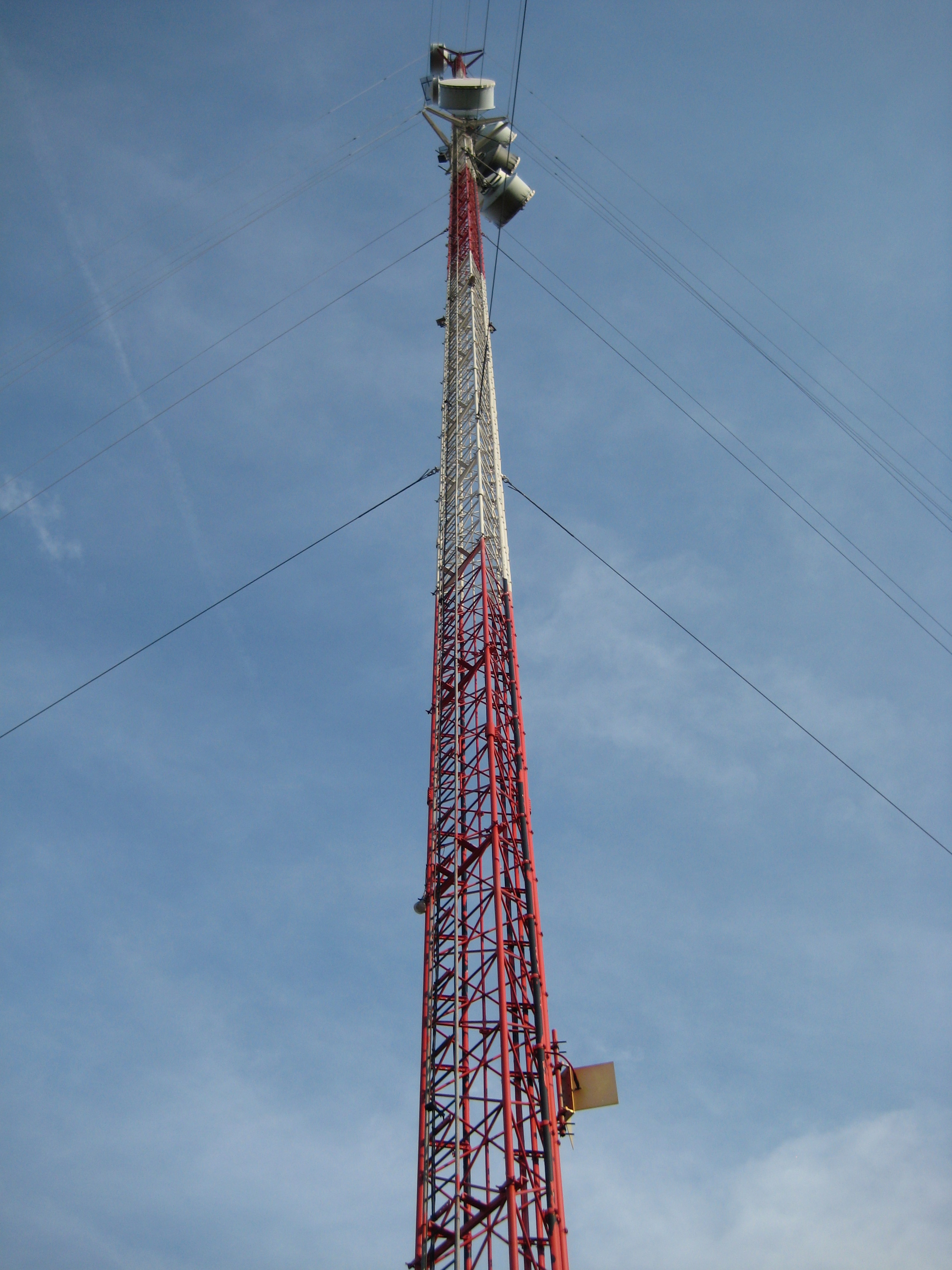

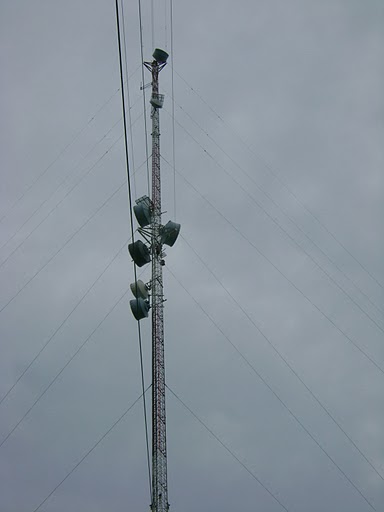

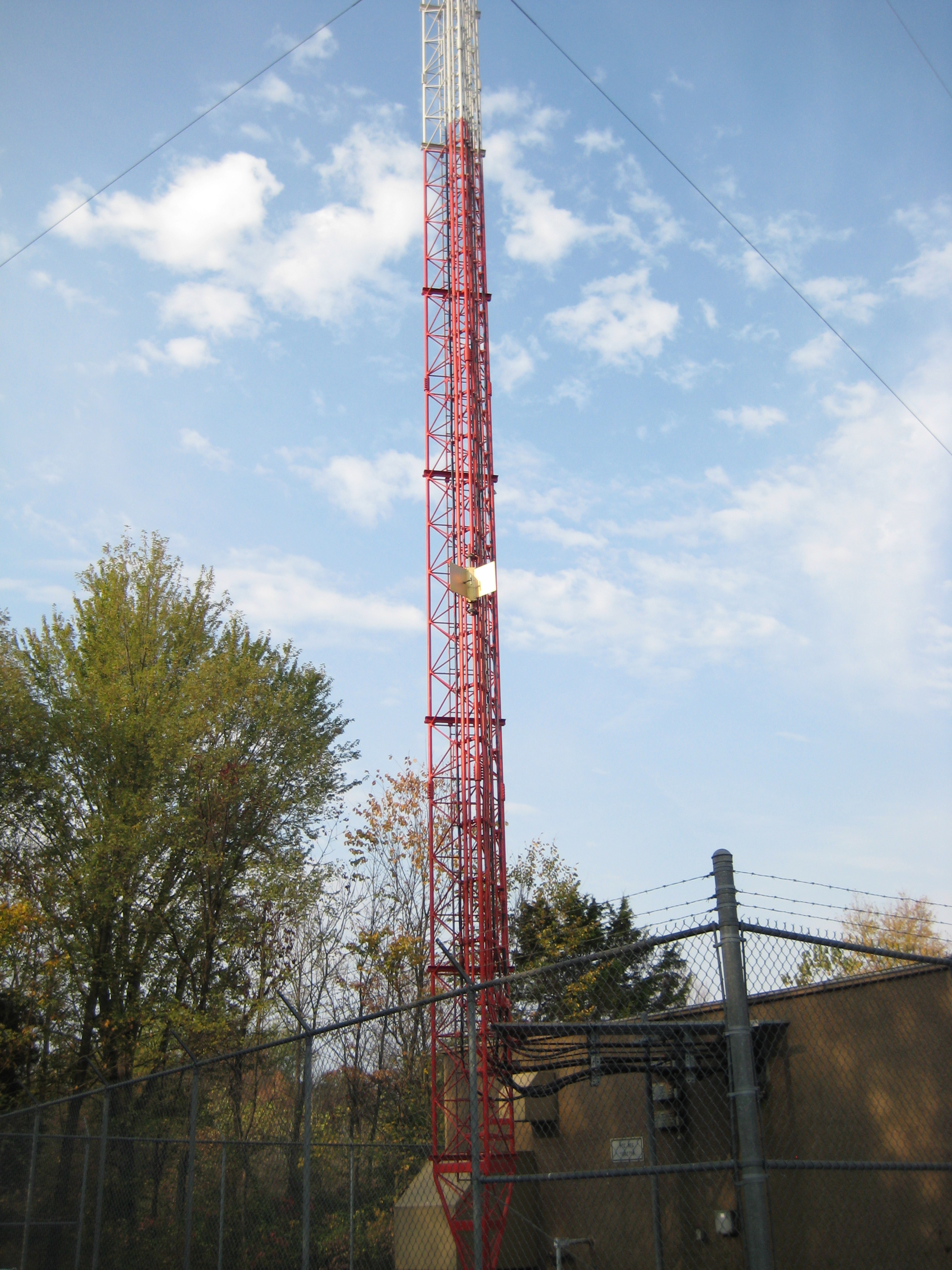

Heights: 10 / 40 / 121 m AGL

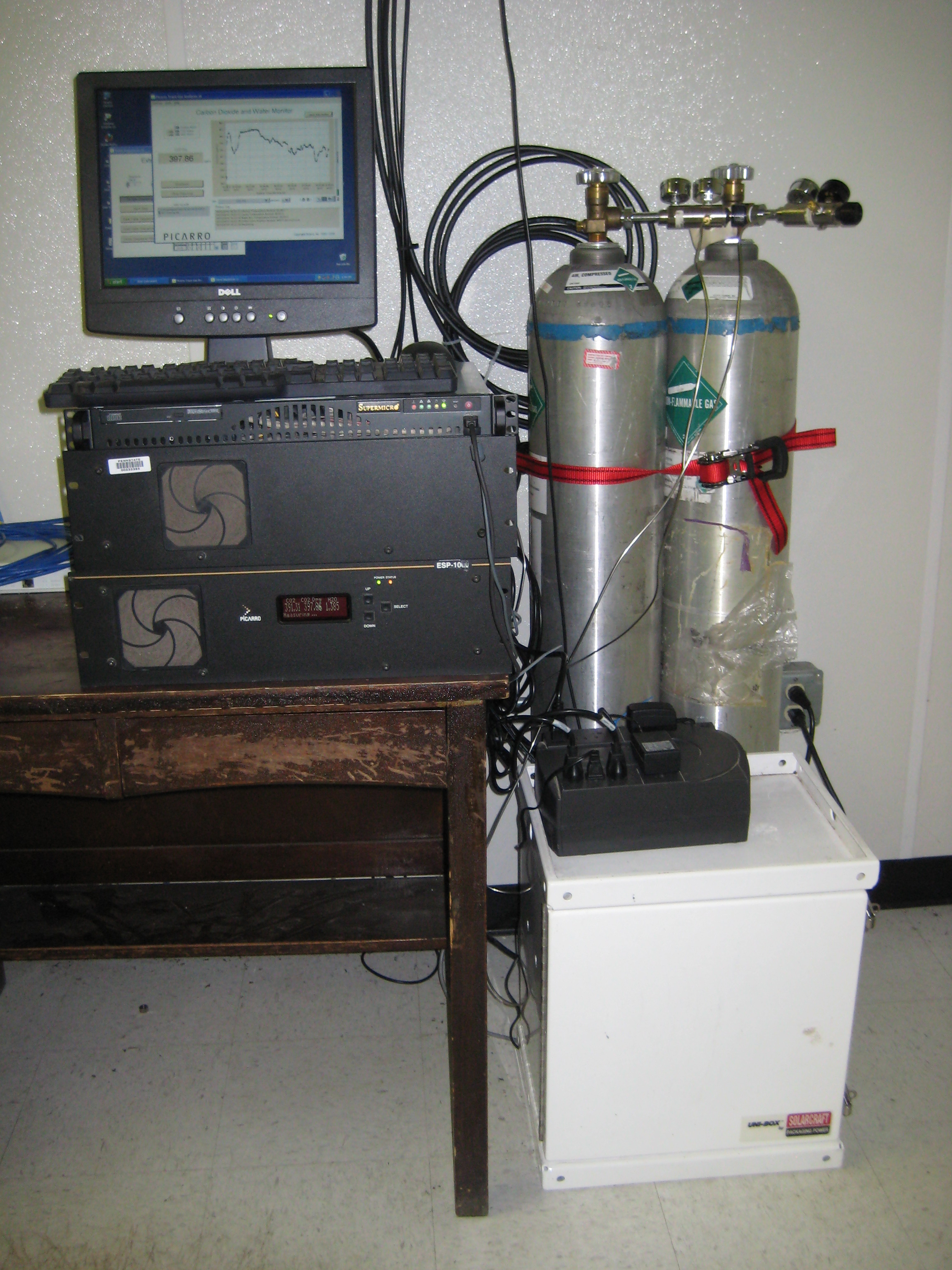

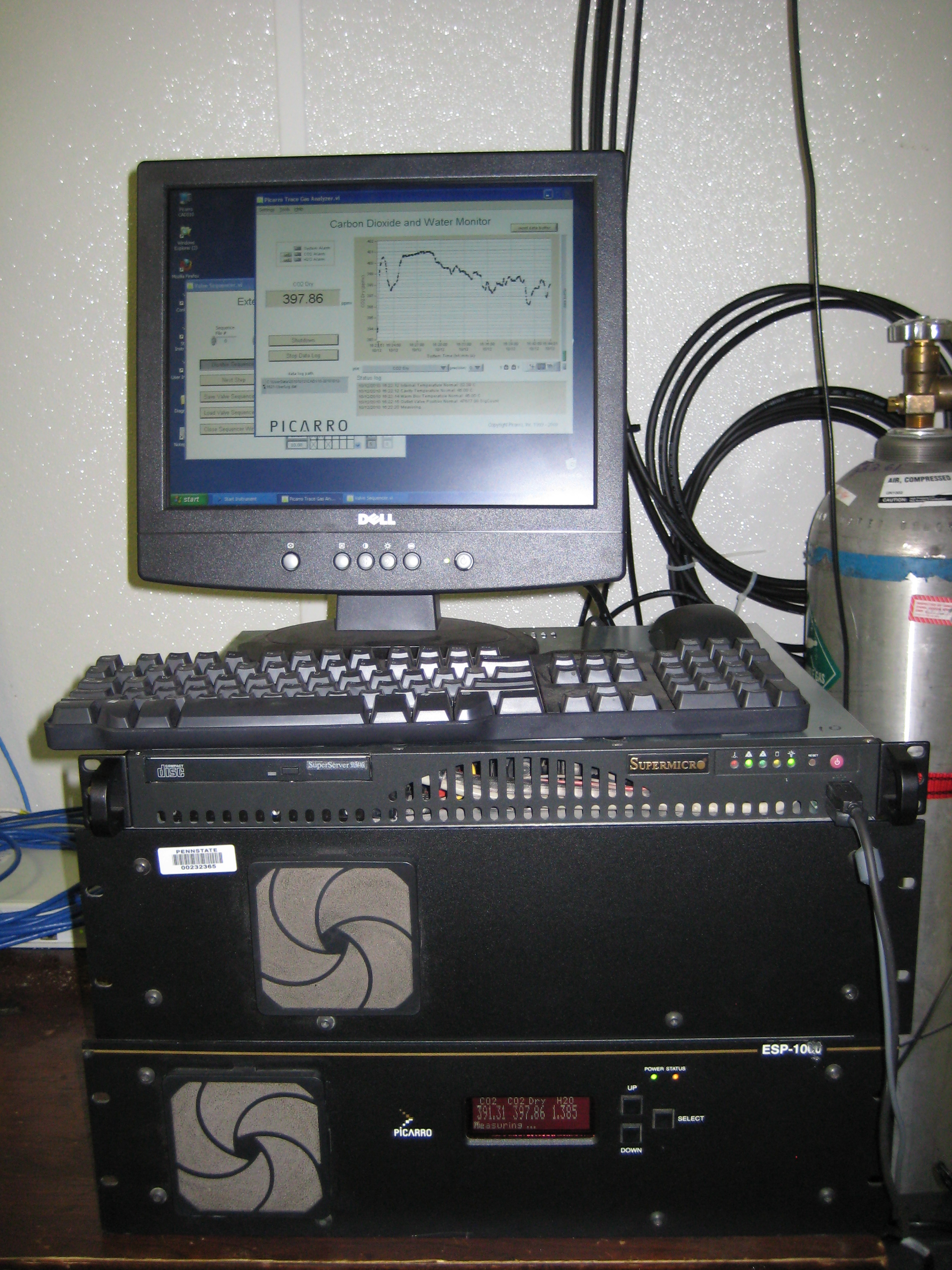

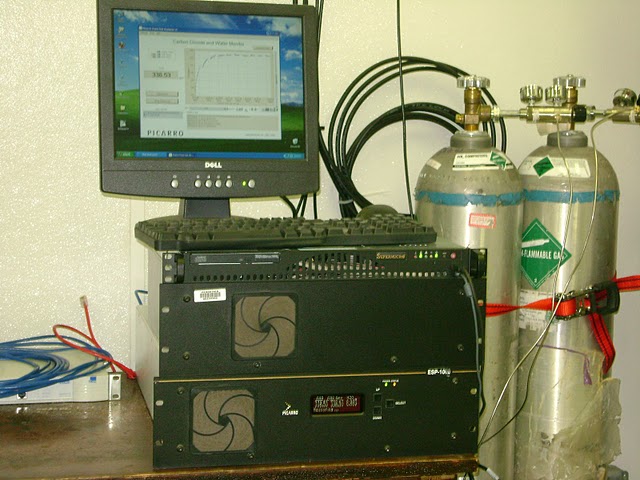

Instrument: CFKADS2006 (CO2/CO/CH4) (CFKADS2060
from 1 June 2012 to mid August 2012)
CFKADS2025 as of December 2012
| Reference Tank |
CO2 (ppm) |
CO (ppb) |
CH4 (ppb) |
Pressure (psi)/ Date |
| CC309297 |
378.61 |
145.3 |
1790.0 |
1750 (12/2012); 1650 (4/2013) |
| CC310071 |
417.06 |
233.7 |
2461.2 |
1550 (12/2012); 1500 (4/2013) |
Pump
hours: 9000 (4/2013)

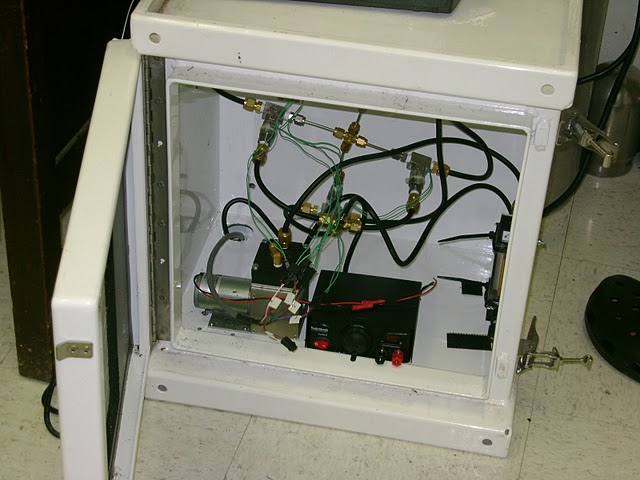

Notes: Pump to purge
unused lines added 12-Oct-2010
